We are committed to providing you with professional Mono Layer Blown Film Machine solutions! Guided by the international and domestic markets, we will continue to develop and expand the scale of the company, improve the quality of Mono Layer Blown Film Machine, blown film extruder, mono layer extruder, Wuhan extruder machine, film blowing machine, blown film machine manufacturer products, and establish a complete quality assurance system and production management system. We insist that the quality standard of each product must be higher than the industry level to ensure that the product reaches a unified standard and quality.

Mono Layer Blown Film Machine

INQUIRY NOW

Whatsapp: +8613757718535

PRODUCT INFORMATION

To make garbage bags film, shopping bags film

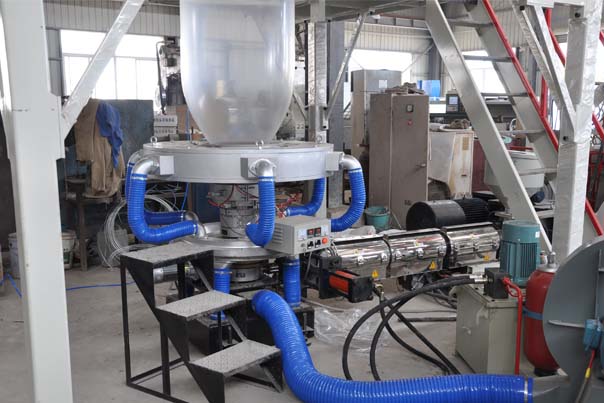

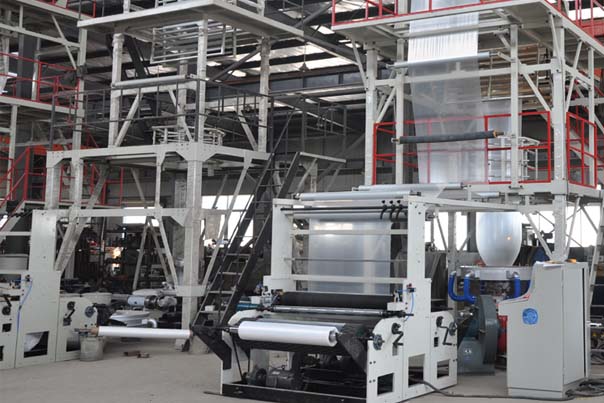

The blown film machine is mainly used in the production of high-density polyethylene(HDPE), low-density polyethylene(LDPE) and linear low density polyethylene(LLDPE) blends of different types of films such as liquid packaging films, composite-based film, shrink film, tire film, agricultural plastic film, cloth film which are widely used for making garbage bags, packing bags, bacteria bags, fertilizer lined bags, etc.

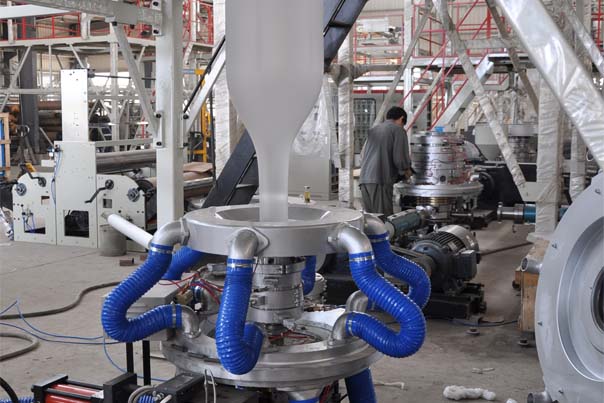

Rotary die head
Back-to-back two station double winder

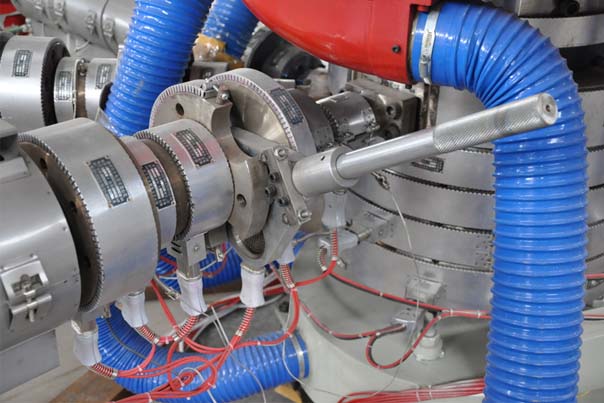

High-speed manual screen changer
Digital temperature control
High-quality alloy steel screw and barrel, nitrited, best hardness and corrosion resistance
Adopting torque motor in order to maintain proper tension winding and tidy

<-------- Can Move Left or Right -------->

Model	SJ-40/28-BL600	SJ-45/28-BL850	SJ-60/28-BL1200
Co-extrusion Layers	Mono Layer	Mono Layer	Mono Layer
Suitable Material	HDPE, LDPE, LLDPE
Max. Folding Film Width	500mm	800mm	1100mm
Film Thickness	0.04-0.10mm	0.04-0.10mm	0.04-0.15mm
Max. Output	30kg/hr	50hr/hr	70kg/hr
Screw Diameter	φ40	φ45	φ60
Screw Ratio(L/D)	28:1	28:1	28:1
Screw Speed	15-150r/min
Main Extruder Motor	11KW	15KW	22KW
Die Size	φ50-100	φ100-150	φ150-250
Mode of Bubble Cooling	Single Lip Air Ring	Dual Lip Air Ring	Dual Lip Air Ring
Mode of Reversing	360o Rotary Die Head	360o Rotary Die Head	360o Rotary Die Head
Width of Auxiliary Machine	600mm	8500mm	1200mm
Winding Mode	Single Winder	Two Station Double Winder	Two Station Double Winder
Max. Winding Diameter	φ600

Model	SJ-65/28-BL1400	SJ-65/28-BL1600	SJ-90/28-BL2200
Co-extrusion Layers	Mono Layer	Mono Layer	Mono Layer
Suitable Material	HDPE, LDPE, LLDPE
Max. Folding Film Width	1300mm	1500mm	2000mm
Film Thickness	0.04-0.15mm	0.04-0.15mm	0.04-0.15mm
Max. Output	100kg/hr	130hr/hr	160kg/hr
Screw Diameter	?65	?65	?90
Screw Ratio(L/D)	28:1	28:1	28:1
Max. Screw Speed	15-150r/min
Main Extruder Motor	30KW	37KW	90KW
Die Size	φ250-300	φ250-350	φ300-400
Mode of Bubble Cooling	Dual Lip Air Ring	Dual Lip Air Ring	Dual Lip Air Ring
Mode of Reversing	360o Rotary Die Head	360o Rotary Die Head	360o Rotary Die Head
Width of Auxiliary Machine	1400mm	1600mm	2200mm
Winding Mode	Back-to-Back Two Station Double Winder
Max. Winding Diameter	φ800
