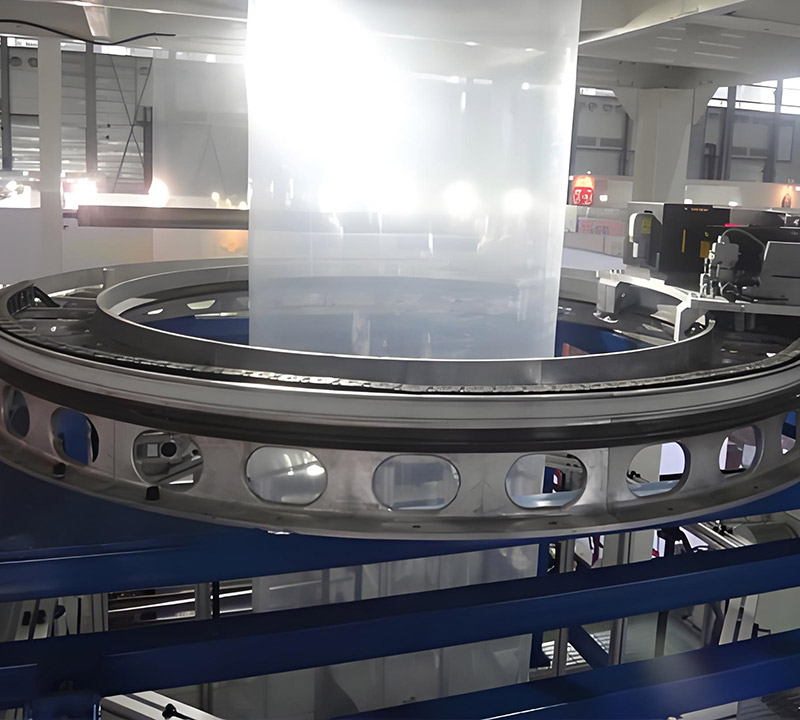

Inline auto film thickness control system

Q: How does an Inline auto film thickness control system solve the problem of poor thickness uniformity and edge thickening?

A traditional offline gauge cannot correct real‑time deviations. An Inline auto film thickness control system uses multi‑point scanning sensors (e.g., X‑ray, NIR) to continuously measure the film profile. The data feeds a closed‑loop controller that automatically adjusts die bolts, air gaps, or extrusion speed. This keeps transverse and longitudinal thickness variation within ±1%, dramatically reduces edge‑to‑center non‑uniformity, and cuts scrap caused by edge thickening. The system also compensates for temperature and viscosity drifts, ensuring consistent product quality without manual intervention.

Q: Can an Inline auto film thickness control system handle thickness fluctuations during frequent line speed changes?

Yes. Conventional controls treat speed as a disturbance and react slowly. A modern Inline auto film thickness control system incorporates a speed‑feedforward model that measures line speed in real time and uses a thickness‑flow transfer function to pre‑adjust extrusion or coating parameters. For example, when speed changes by ±30%, the system limits thickness fluctuation to less than 2% without manual retuning. This prevents the long "out‑of‑control" periods that normally generate high scrap during acceleration or deceleration.

Q: Why is an Inline auto film thickness control system better than offline sampling for high‑precision optical films?

Offline sampling has a long feedback delay (minutes to hours), during which many meters of film can be out of spec. An Inline auto film thickness control system measures every point of the web at production speed and provides millisecond‑level feedback. It immediately corrects any deviation caused by melt temperature changes, die bolt drift, or raw material batch variations. For optical films requiring ±0.5 μm accuracy, this real‑time correction ensures CPK ≥ 1.33, eliminates rework, and reduces quality claim risks.

Q: How does an Inline auto film thickness control system maintain accuracy in dusty or humid coating environments?

Ordinary sensors lose accuracy due to dirt or condensation, leading to false adjustments. An Inline auto film thickness control system designed for harsh lines uses contamination‑resistant sensors (e.g., X‑ray or capacitive) with automatic air purging and temperature compensation. The Inline auto film thickness control system maintains ±0.1 μm sensor accuracy even in high humidity or dust. It rejects signal drift and avoids erroneous actuator movements, so the film thickness stays on target without frequent sensor cleaning or recalibration.

Q: Can an Inline auto film thickness control system independently manage interlayer thickness ratios in multi‑layer films?

Yes. Multi‑layer co‑extrusion or coating requires separate control of each layer’s contribution to total thickness. An advanced Inline auto film thickness control system uses spectral reflectance or multi‑channel capacitive sensors to resolve individual layer thicknesses online. It then assigns independent PID loops to each layer. For example, the system can lock a substrate layer at 50 μm while regulating a functional layer at 5 μm, regardless of total thickness changes. This ensures both overall gauge and layer ratio meet strict specifications.

Q: How does an Inline auto film thickness control system suppress high‑frequency periodic thickness variations (e.g., roll eccentricity or screw pulsation)?

Many systems have a response time >500 ms, too slow for 5‑10 Hz disturbances. A high‑performance Inline auto film thickness control system employs FPGA‑based parallel processing, achieving measurement‑calculation‑actuation delay <50 ms. Combined with FFT spectrum analysis, it identifies dominant disturbance frequencies and applies targeted compensation. As a result, the Inline auto film thickness control system attenuates roll eccentricity and screw pulsation by up to 80%, producing a much smoother thickness profile without mechanical modifications.

Q: Does an Inline auto film thickness control system integrate with SPC for automatic data traceability?

Absolutely. A modern Inline auto film thickness control system includes a built‑in SPC (Statistical Process Control) module. It automatically calculates Cp, Cpk, and generates real‑time control charts (Xbar‑R, Xbar‑S) with out‑of‑limit alarms. All historical thickness data are stored by batch in an SQL database. The Inline auto film thickness control system allows one‑click quality reports and full traceability to meet ISO/TS 16949 or automotive film requirements. This eliminates manual data logging and reduces human error in quality documentation.

Q: What is the typical return on investment (ROI) when upgrading to an Inline auto film thickness control system?

Upgrading to an Inline auto film thickness control system typically reduces scrap by 30‑50% and increases line throughput by 10‑20%. The system eliminates off‑spec production during start‑ups, grade changes, and speed ramps. With fewer quality claims and less operator intervention, most users achieve payback within 6‑12 months. Moreover, the Inline auto film thickness control system provides consistent thickness accuracy that allows you to run closer to lower spec limits, saving raw material costs. Over one year, material savings alone often exceed the system investment.
