Gravimetric Dosing System

Computer controlled, 2-6 components are available

The modular logic allow, just changing the surge hopper, to upgrade the dosing system up to max 6 components.
Includes:
·Surge hopper portioned in 4 compartments
·Weight bin installed on two load cells
·Gravimetric mixing chamber based on two load cells
·Easy drain spout for each surge hopper compartment
·Dispenser slide gate type
To meter multi-components by gravity flowing
Single components, 2 components, 4 components and 6 components are available

Customized Electrical box on board mounted including 3.5'' B&R PLC and dedicated touch screen HMI.
Process control software includes :
Blending and dosing control
Loss in weight control
Gram/metre and throughput control
Components consumption
Alarms

PLC controlled.
Touch screen control.
3.5'' B&R PLC

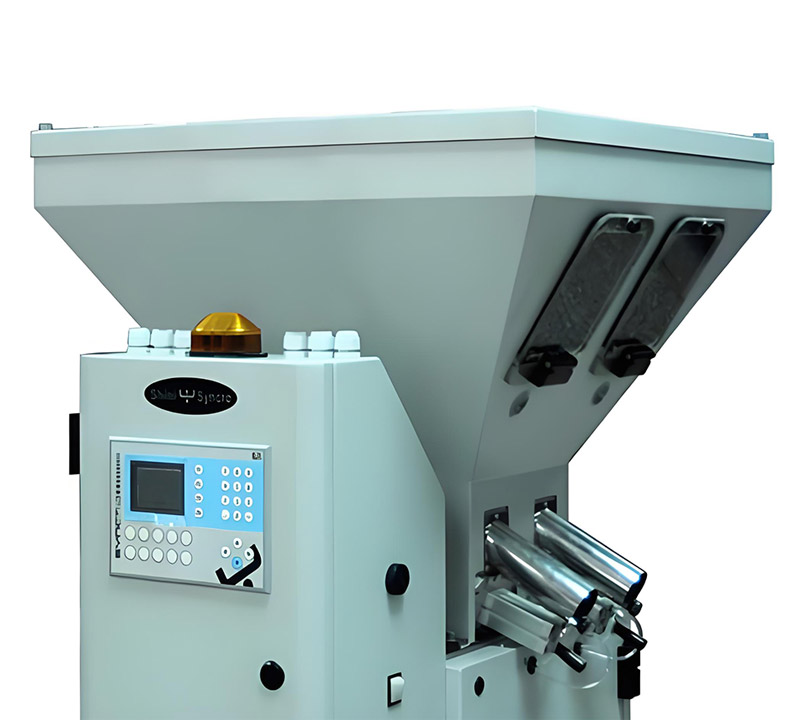

Gravimetric dosing system


Gravimetric dosing system


Four components blender


Single component blender
