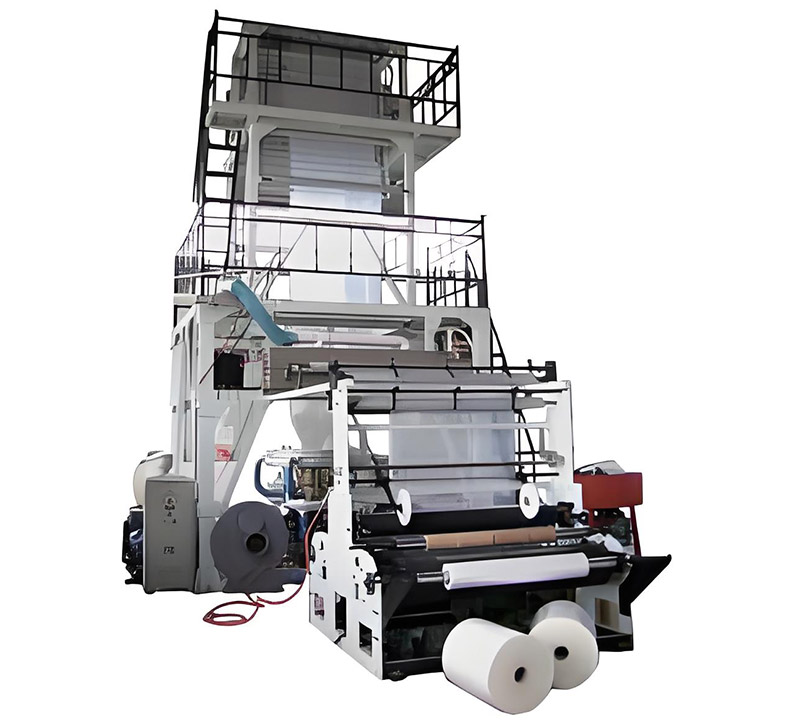

3 Layer Co-Extrusion Blown Film Machine

Normal 3 layer coextrusion machine

 The 3 layer film blowing line is composed in three extruders and auxiliary parts. It can be used for blowing with high and low density polyethylene(HDPE,LDPE), linear low density polyethylene(LLDPE), metallocene polyethylene, etc. through the extrusion die head to form three-layer complex composite film. With greatly improving the physical properties of the films and an increase of strength, so that the films featured in good obstruct properties and air tightness. If the layers are using different colors, the performance and preservation capabilities of the film can be improved.

360° non-stop rotary die head
Mandrel spiral die head made by CNC Machining Center with mirror polishing
High-quality alloy steel screw and barrel, nitrited, best hardness and corrosion resistance
Co-extrusion central feeding spiral die head
High-speed screen changer with melt pressure gauge
Back-to-Back two station double winder
Auto tension control

3 layer coextrusion die head installation


3 layer coextrusion main extruder


Hydraulic screen changer


Back to back double winder


3 layer coextrusion machine
